• Please check these pictures to identify which ACC radar your truck has, this will help choose which part number bullbar you require.
• ****************************************************
• Trucks fitted with “old” ACC radar should be:
• Australian chassis No. (2#####) built pre 12/2023
• Imported chassis No. (3##### or 8##### or 9#####) built pre 10/2023
• (The lower step is held shut with clips)
• ****************************************************
• Trucks fitted with “new” ACC radar should be:
• Australian chassis No. (2#####) built 12/2023 onwards
• Imported chassis No. (3##### or 8##### or 9#####) built 10/2023 onwards
• (The lower step is held shut with push button latches each side)

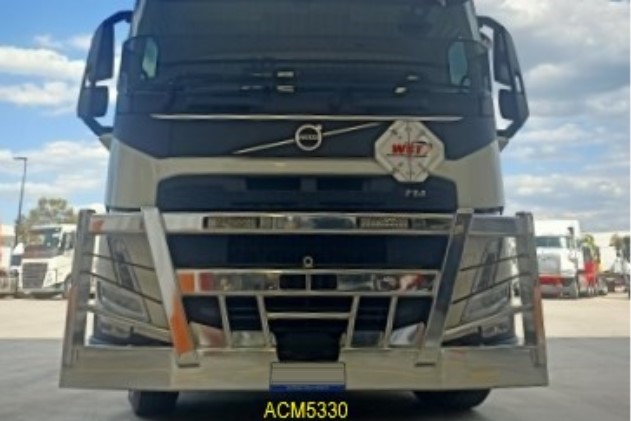

• To Suit: Volvo

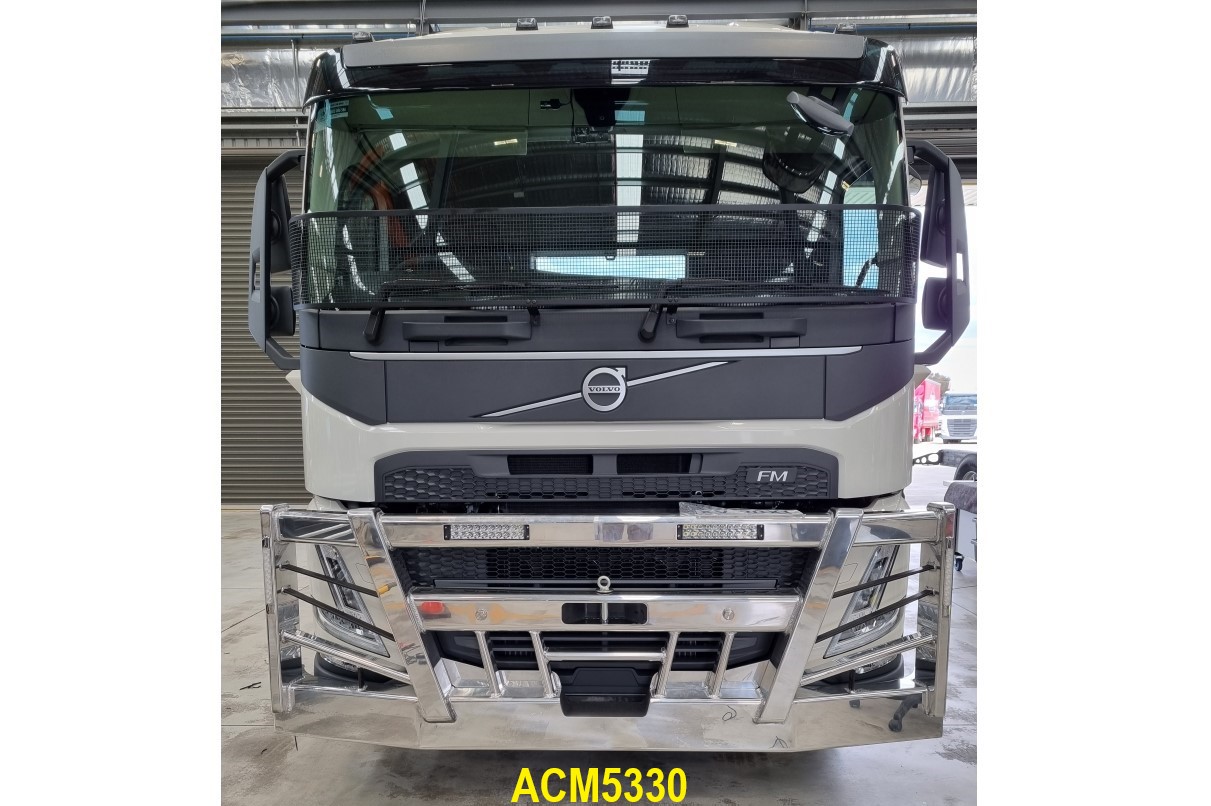

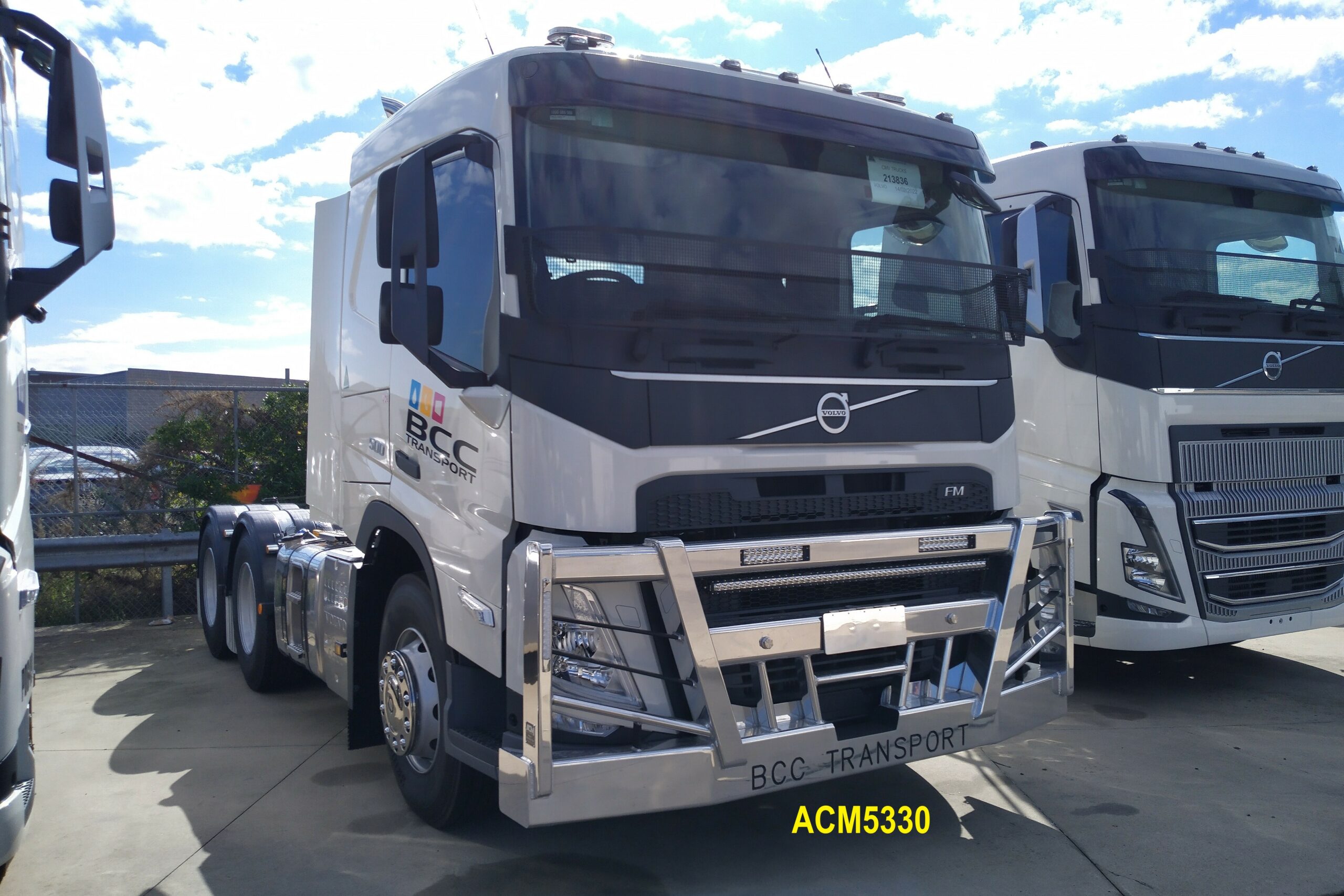

• Part Number: ACM5330 (suit old ACC)
• Part Number: ACM5515 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: 200mm main beam, 90x130mm inner posts, 70mm tapered outer posts, centre tow point, removable towpin, holes to suit 12″ LED light bars & LED park/indicators.
• Optional: Supply and fit Stedi dual row LED light bars. Hinged number plate holder.

• To Suit: Volvo

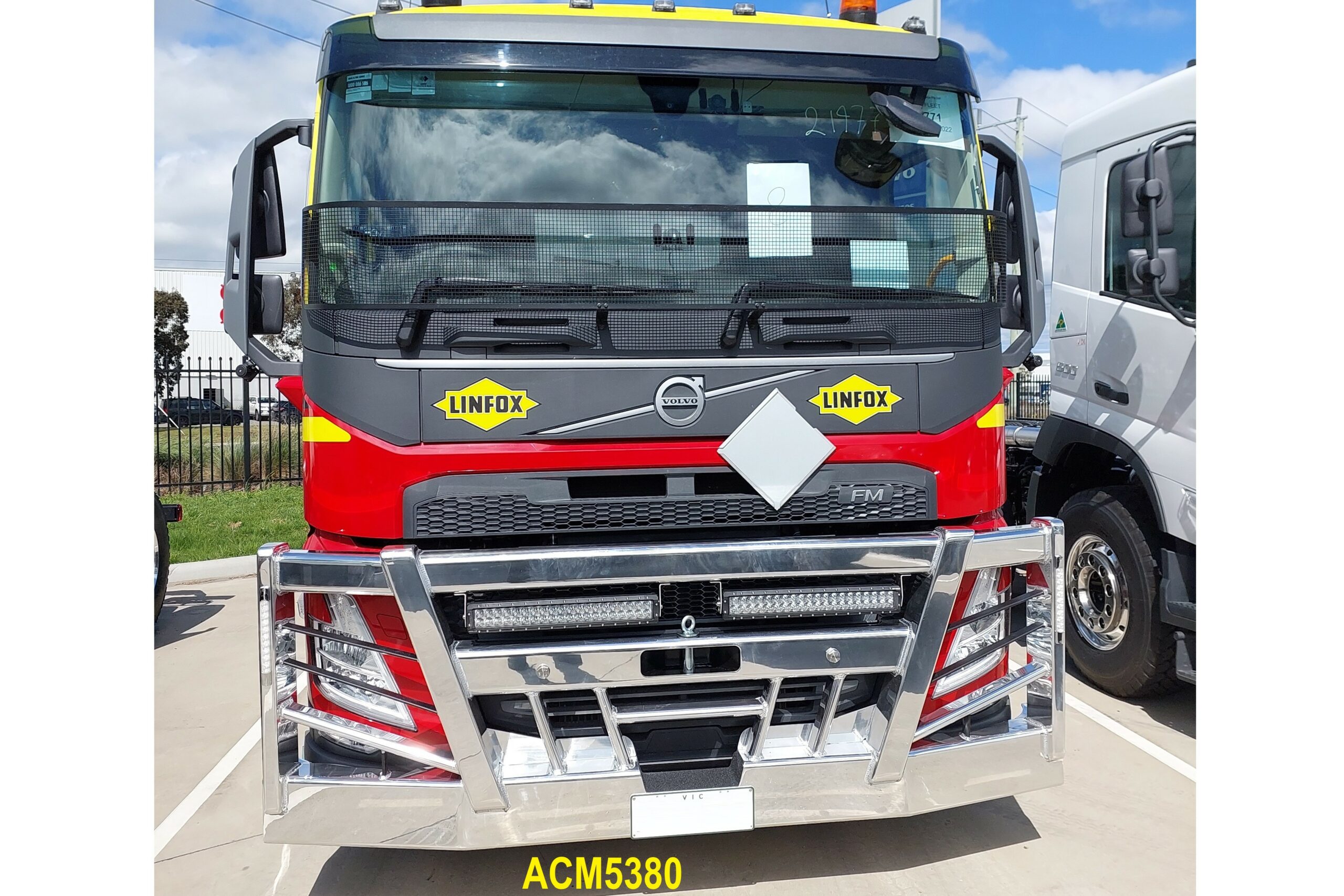

• Part Number: ACM5380 – (suit old ACC)

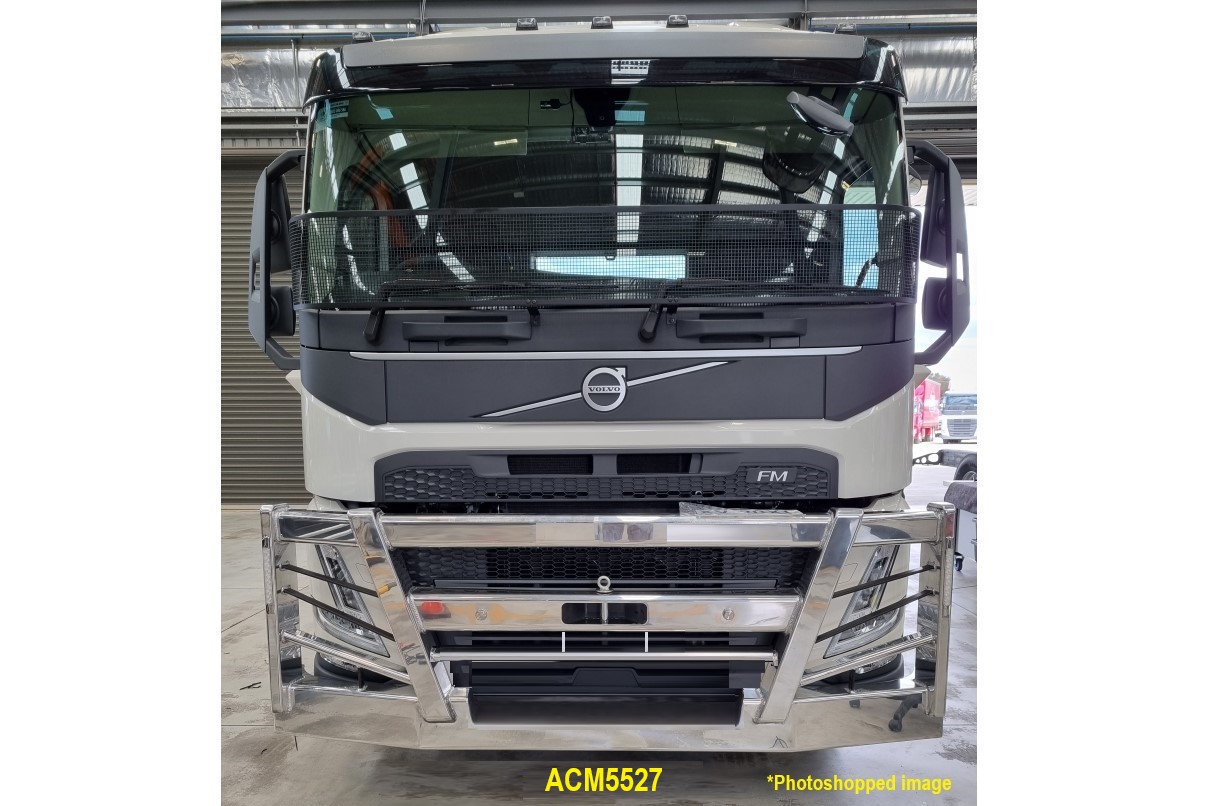

• Part Number: ACM5527 – (suit new ACC)
• Part Number: ACM5412 – (suit 4×2 chassis only, old ACC)
• Part Number: TBA – (suit 4×2 chassis only, new ACC)
• Models: FM 2021+ (VERSION 5)
• Includes: 200mm main beam, 90x130mm inner posts, 70mm tapered outer posts, centre tow point, removable towpin & LED park/indicators.
• Optional: Hinged number plate holder. Supply and fit 2 off 22″ Stedi light bars.
• *Similar to ACM5330 above, but without light bar holes.

• To Suit: Volvo
• Part Number: ACM5405 (suit old ACC)

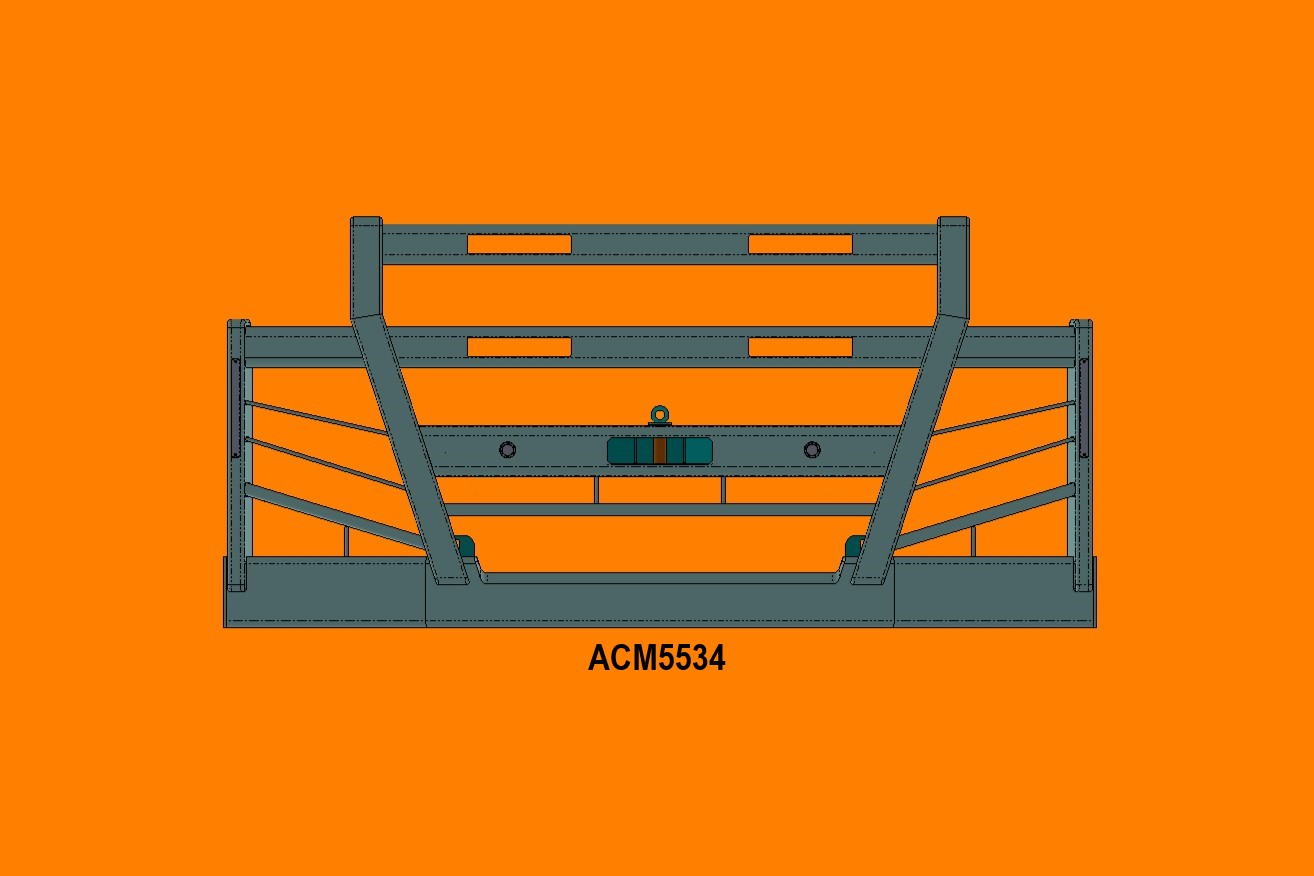

• Part Number: ACM5534 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Centre tow point, removable towpin, holes to suit 12″ LED light bars & LED park/indicators
• Optional: Supply & fit Stedi LED light bars. 9x recessed Hella marker lamps

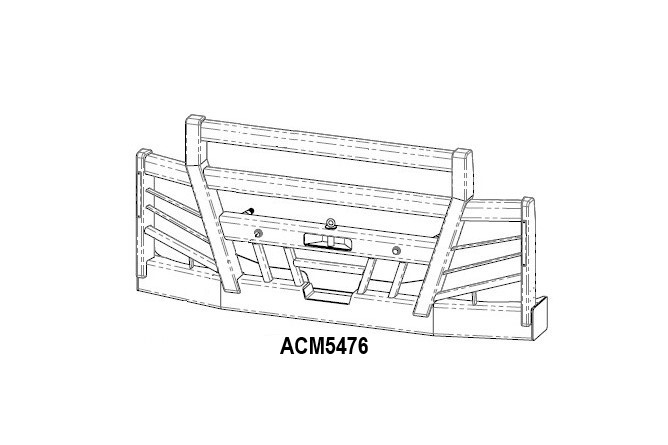

• To Suit: Volvo
• Part Number: ACM5476 (suit old ACC)
• Part Number: TBA (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Centre tow point, removable towpin & LED park/indicators.
• Optional: 9x recessed Hella marker lamps in main beam.

• To Suit: Volvo

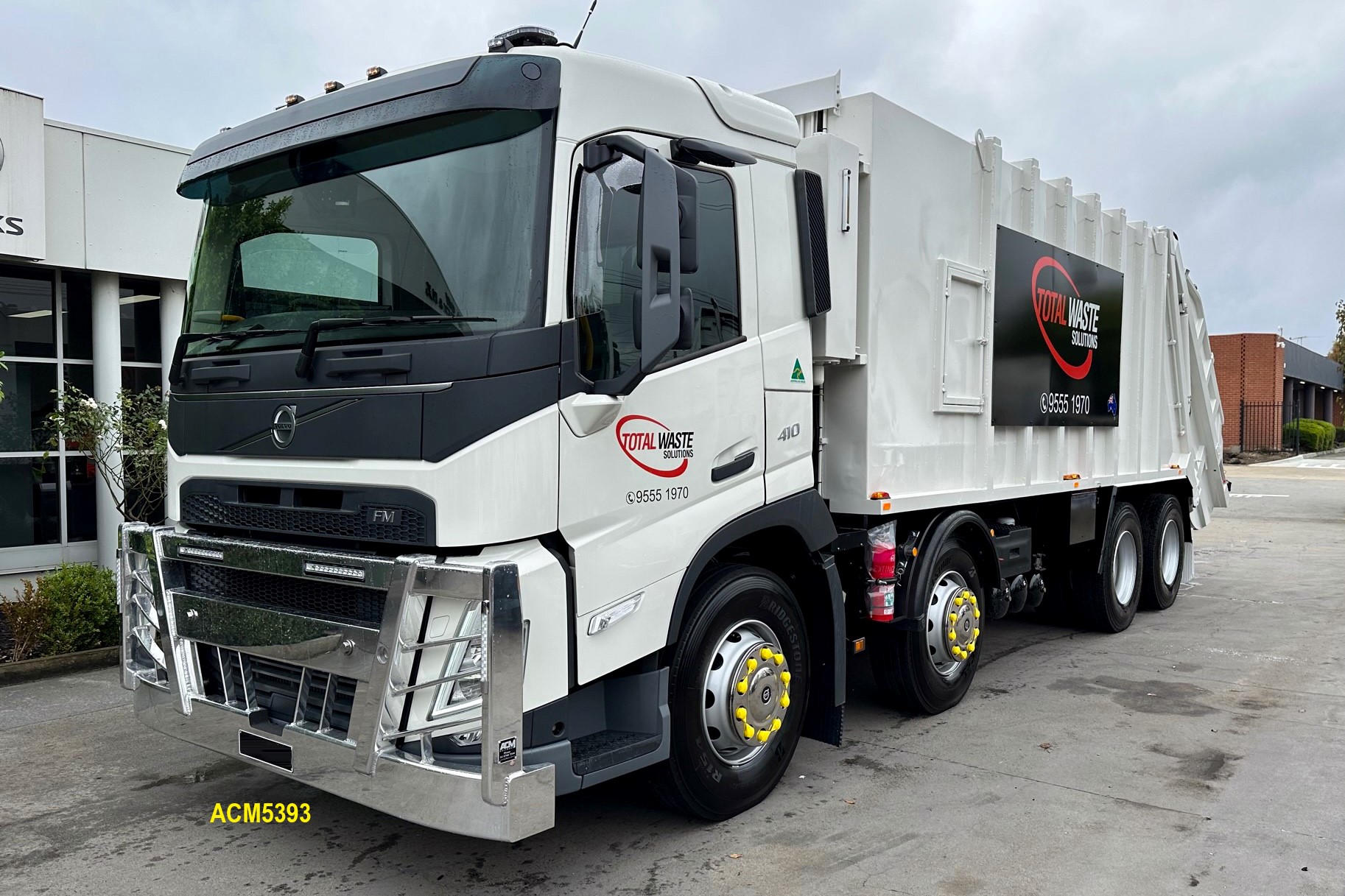

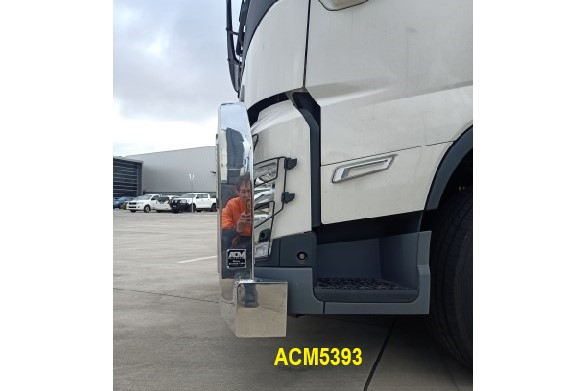

• Part Number: ACM5393 (suit old ACC)

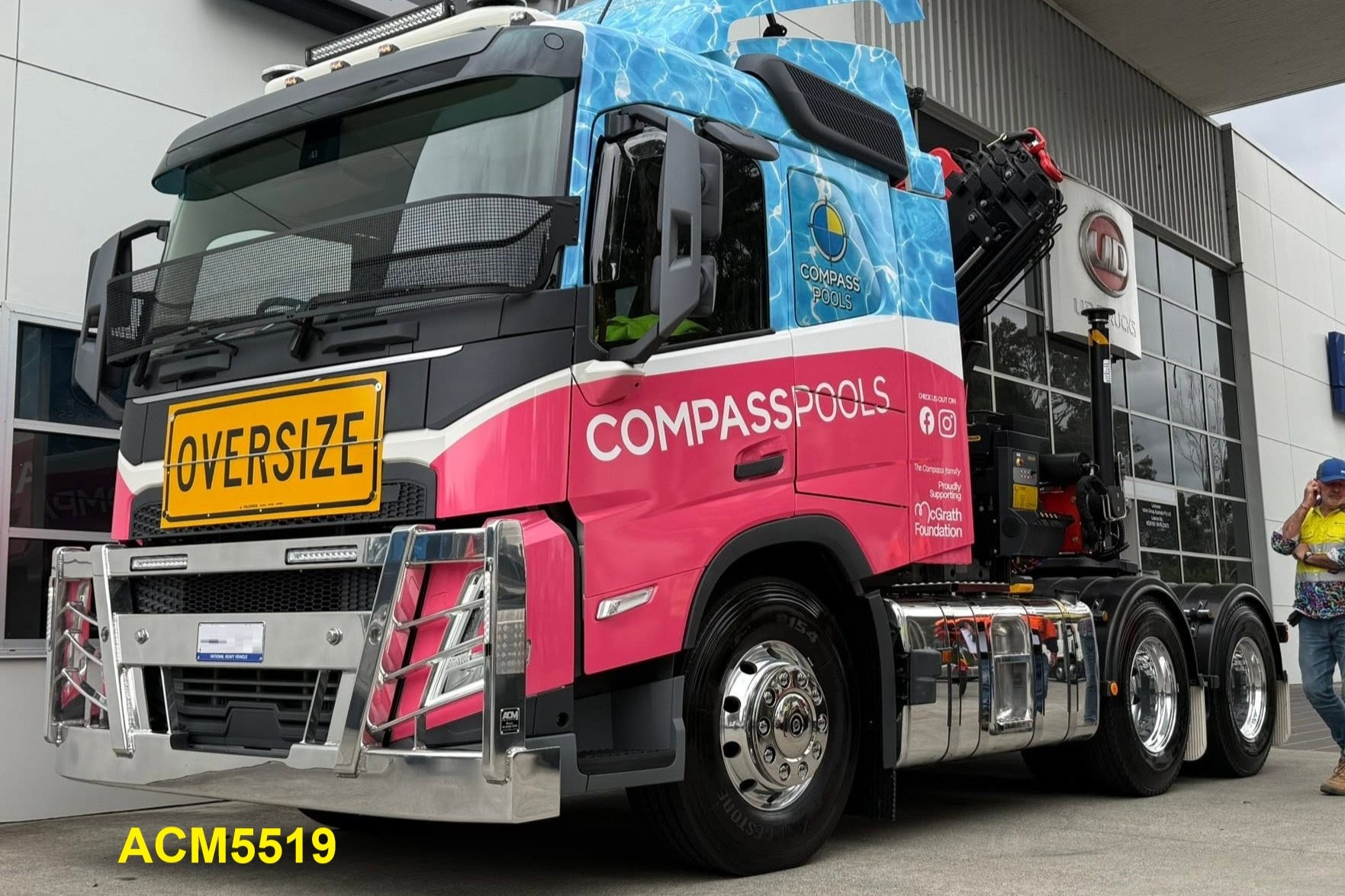

• Part Number: ACM5519 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Factory tow hook points & LED park/indicators.
• Features: Solid compact design, using aluminium extrusions (not fabricated from plate). *Note: This bullbar must be tilted before tilting the cabin.
• Optional: Supply and fit Narva Explora 350 LED light bars.

• To Suit: Volvo

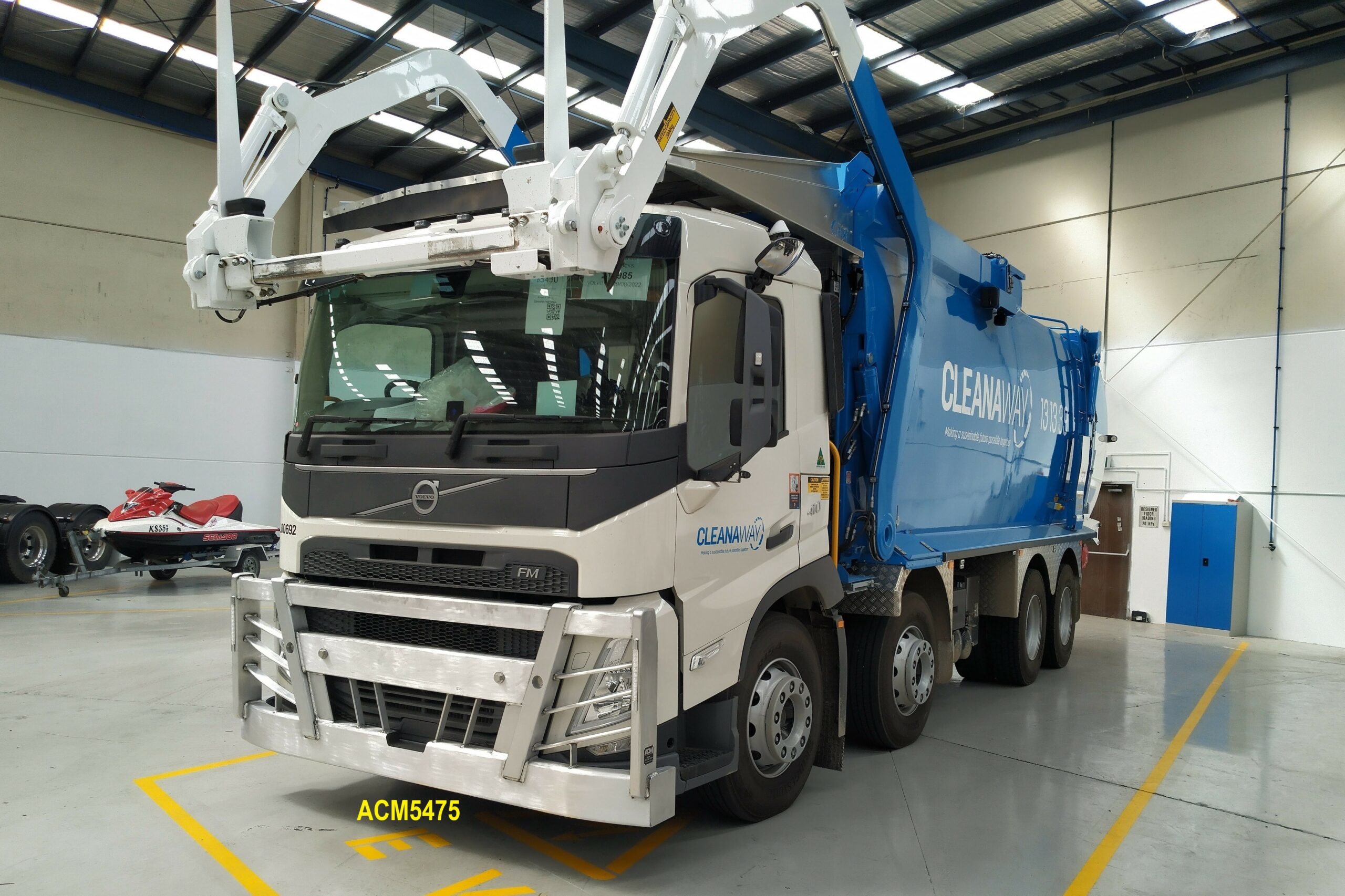

• Part Number: ACM5475 (suit old ACC)
• Part Number: ACM5520 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Factory tow hook points & LED park/indicators.
• Features: Solid compact design, using aluminium extrusions (not fabricated from plate).
• *Note: This bullbar must be tilted before tilting the cabin.
• Optional: Brush finish.
• *Note: Same as ACM5393 above but without LED light holes.

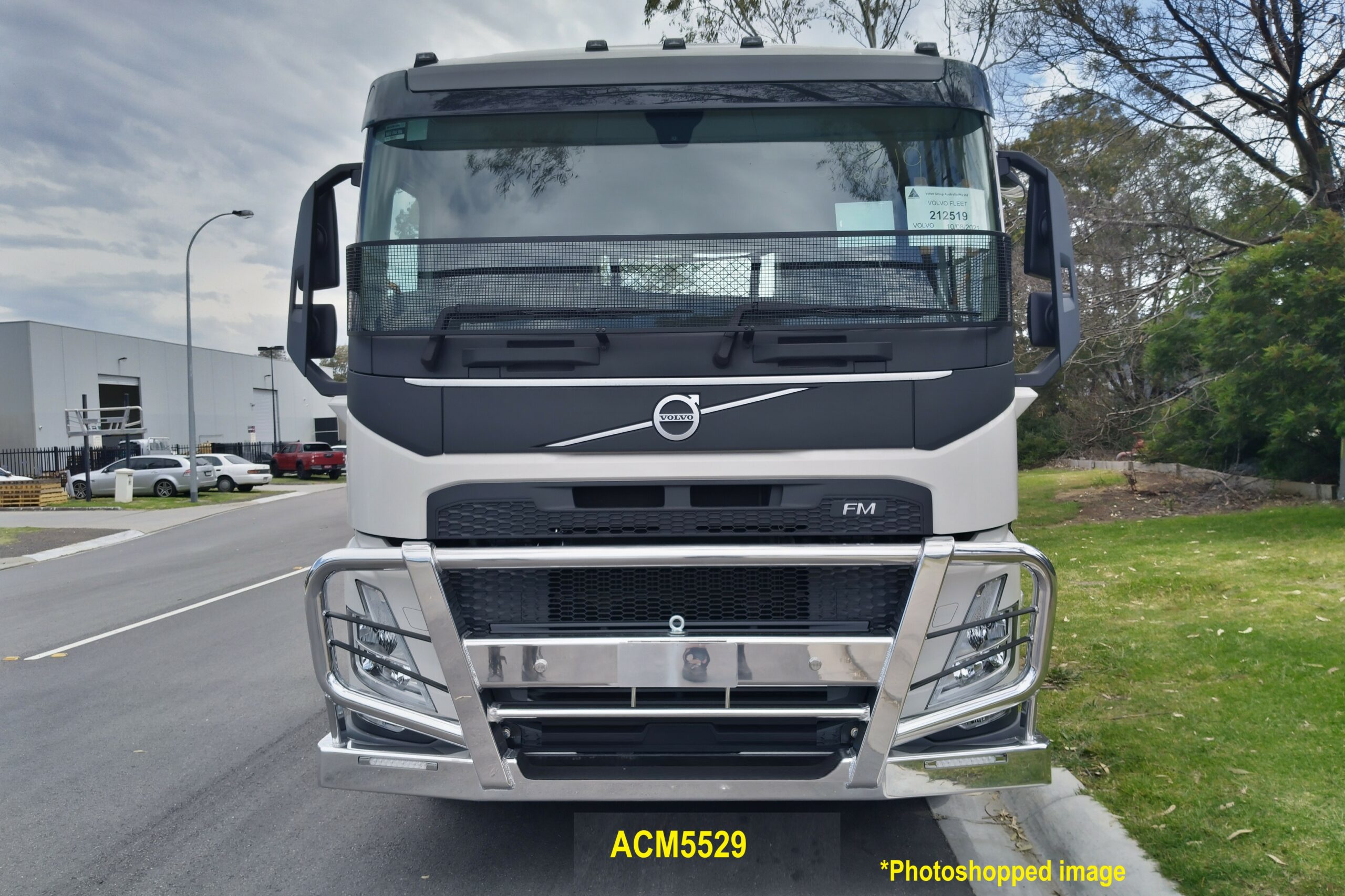

• To Suit: Volvo

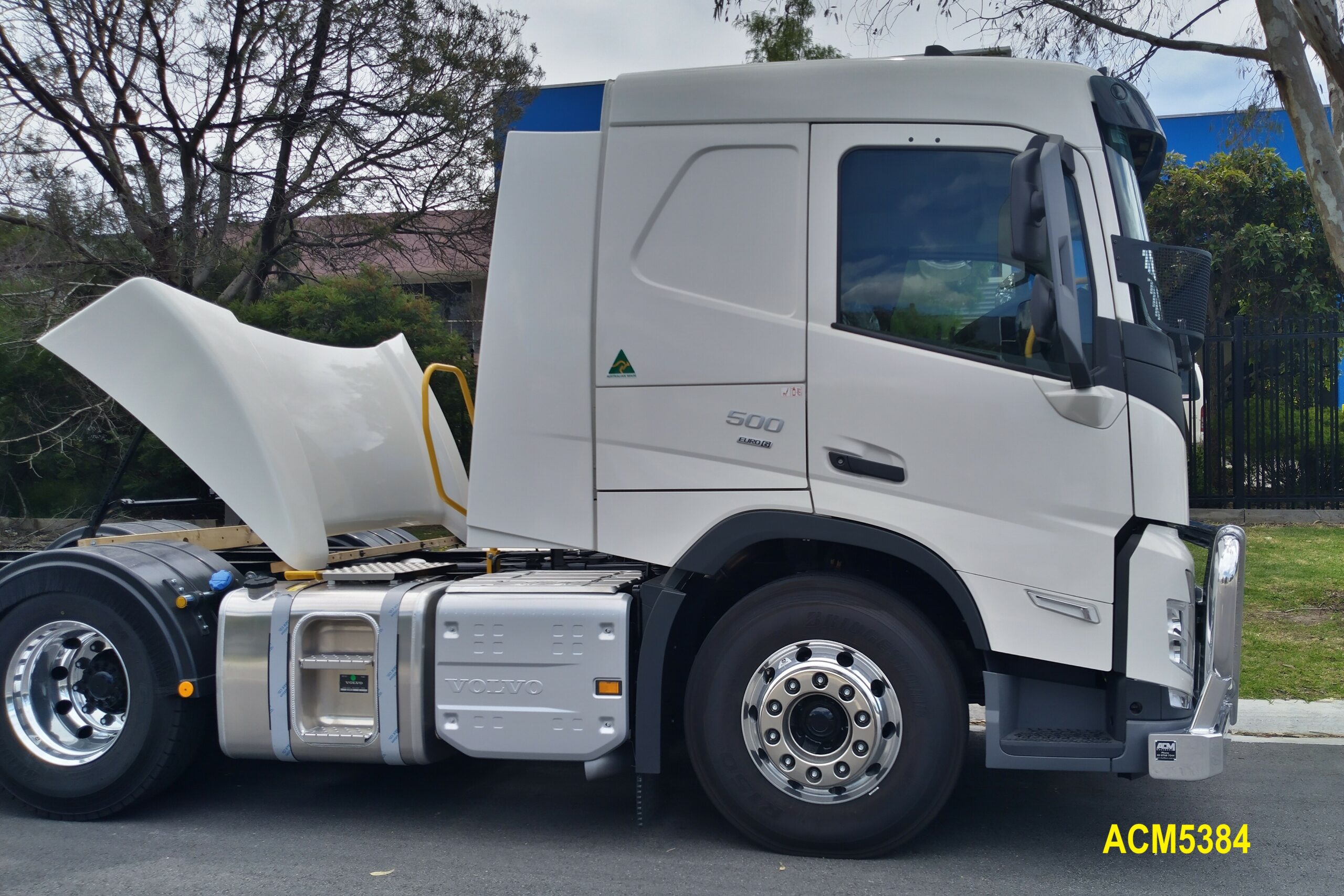

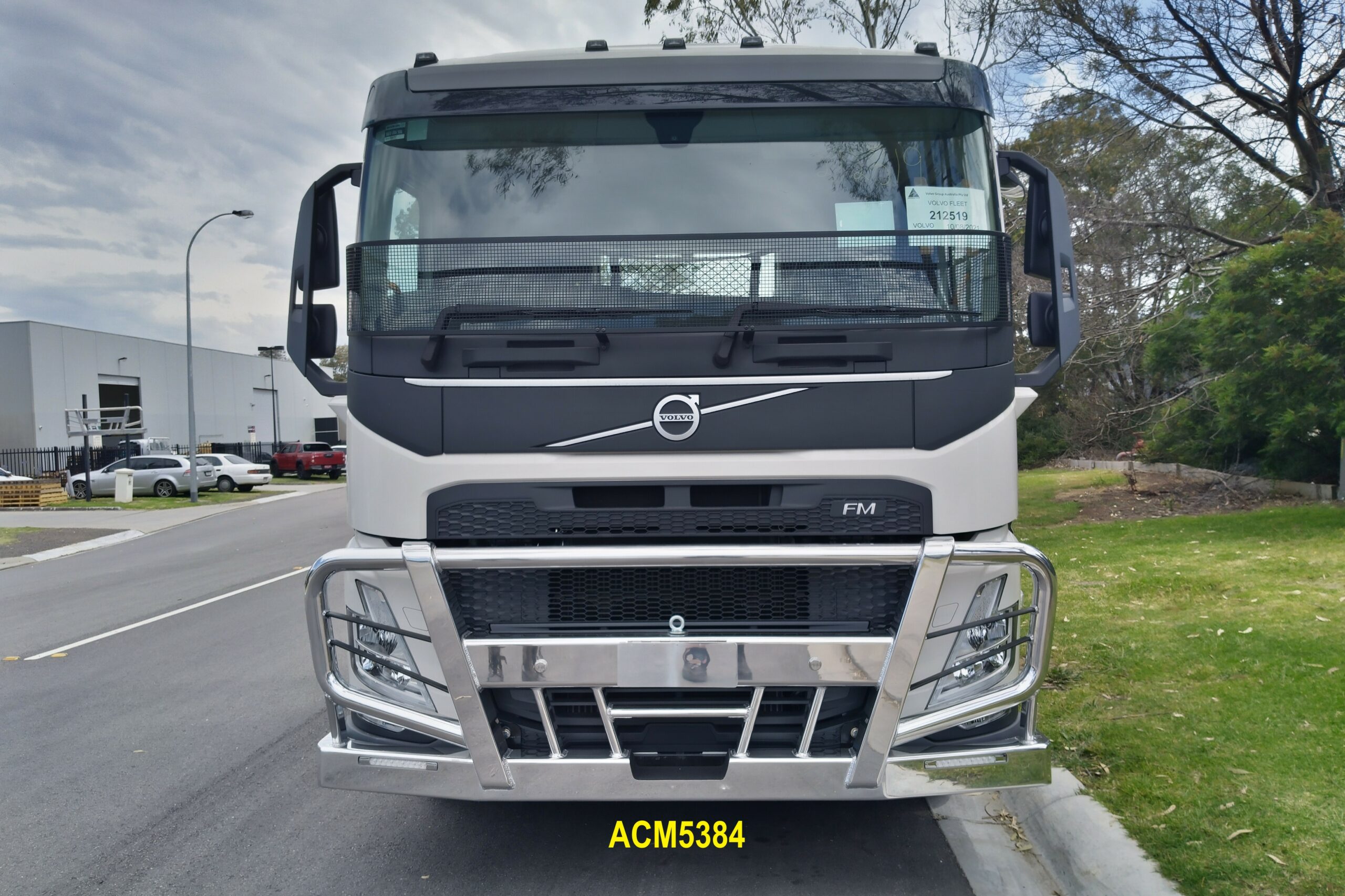

• Part Number: ACM5384 (suit old ACC)

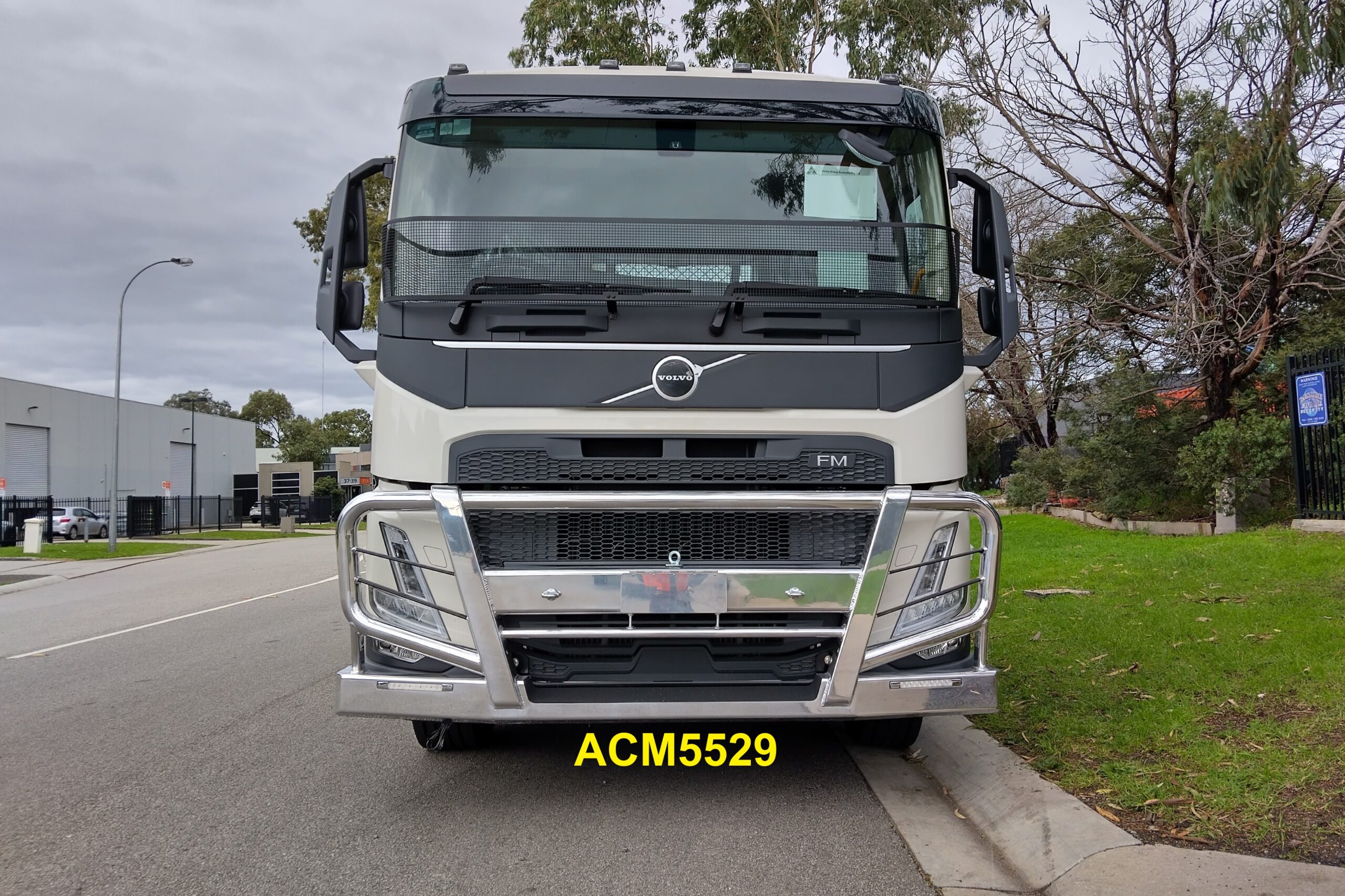

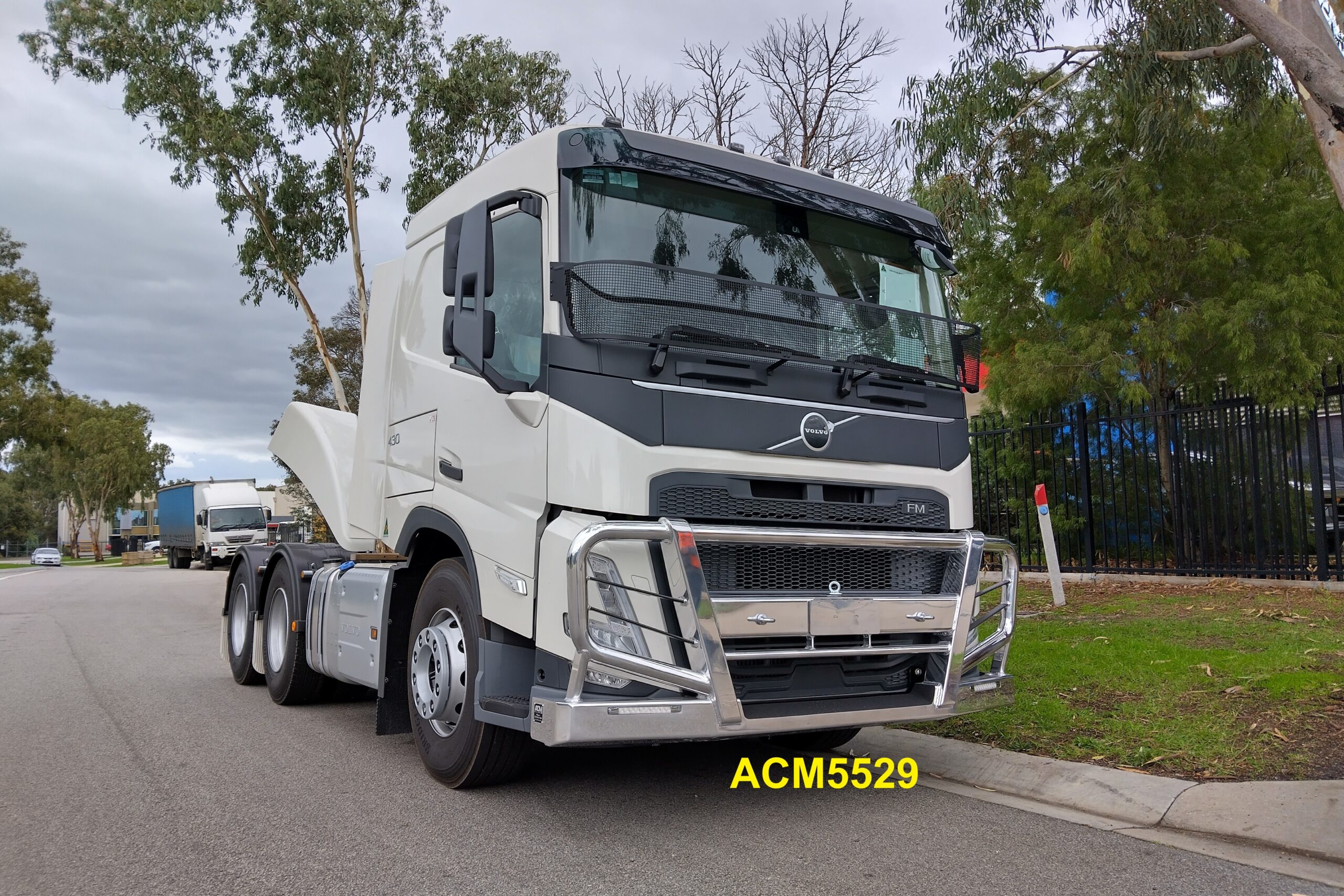

• Part Number: ACM5529 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Heavy duty tow point, removable towpin, (optional) LED park/indicators in beam, oval tube splitter above ACC radar & spot/LED light brackets.
• Optional: Hinged rego plate holder in front of towbox.

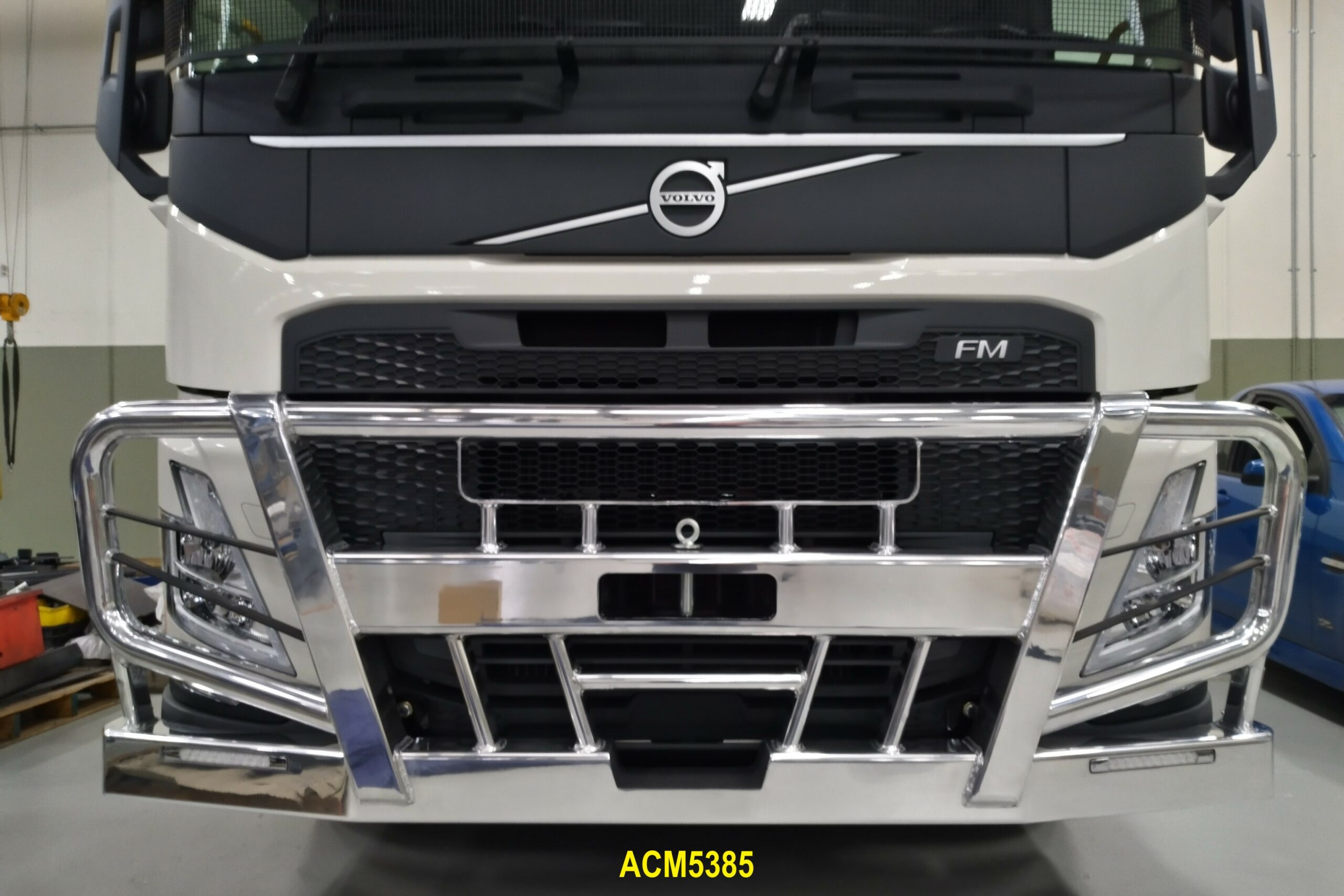

• To Suit: Volvo

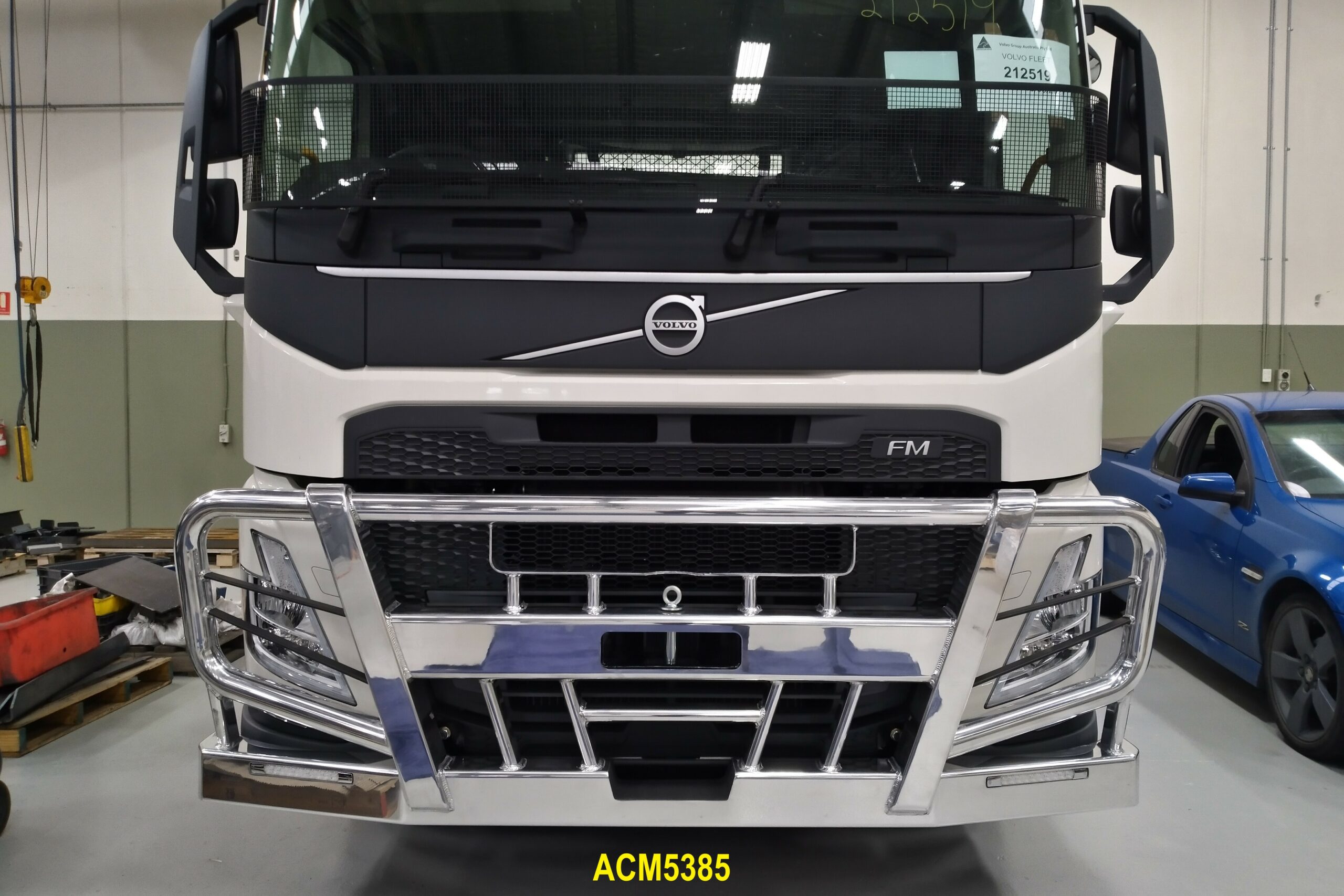

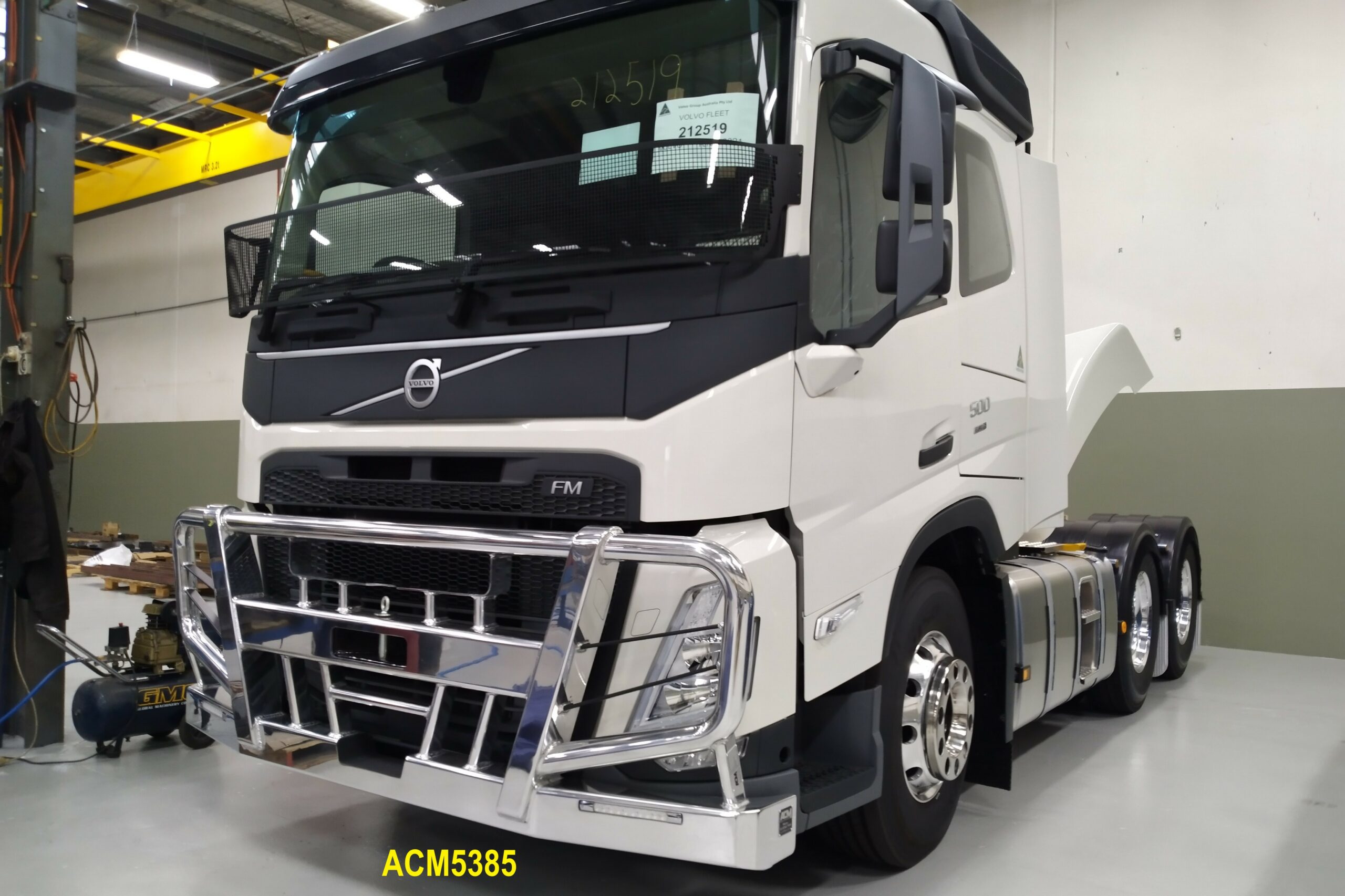

• Part Number: ACM5385 (suit old ACC)
• Part Number: ACM5539 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Heavy duty tow point, removable towpin, LED park/indicators in beam & upper frame to suit Hella 750mm EnduroLED light bar (P/No. 1GJ910442001) or 28″ Stedi Dual Row light bar (P/No. LEDST4K-28-52L).
• Optional: Hinged rego plate holder in front of towbox also available.

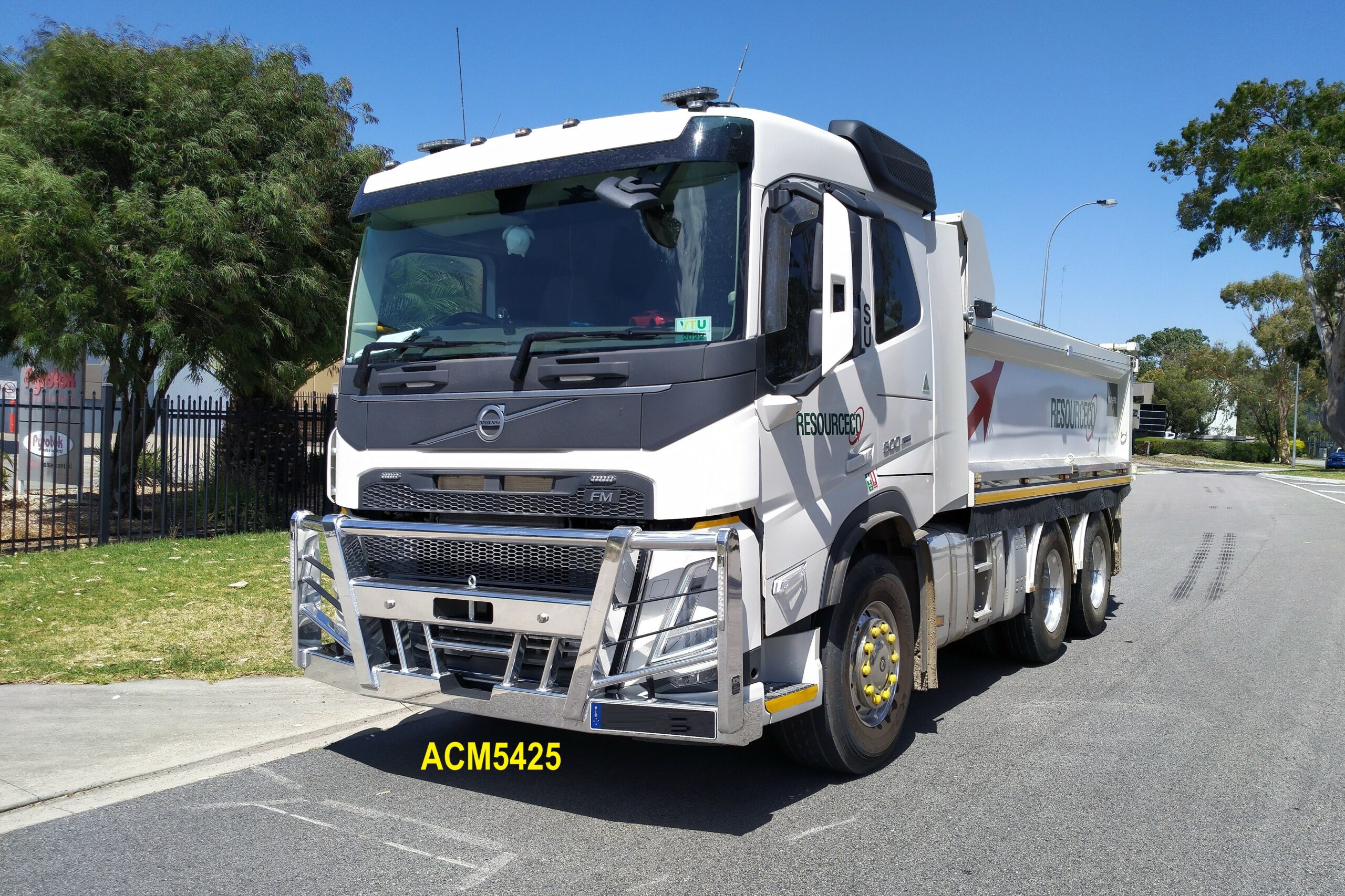

• To Suit: Volvo
• Part Number: ACM5425 (suit old ACC)

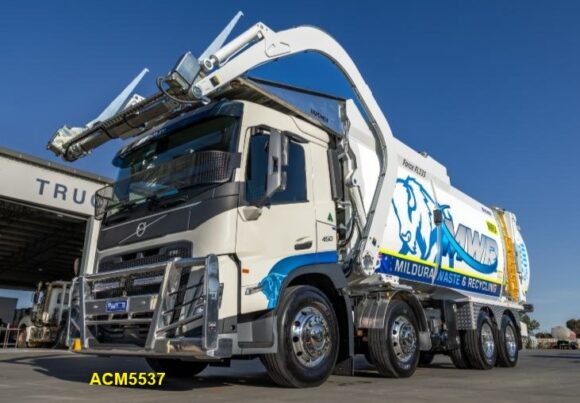

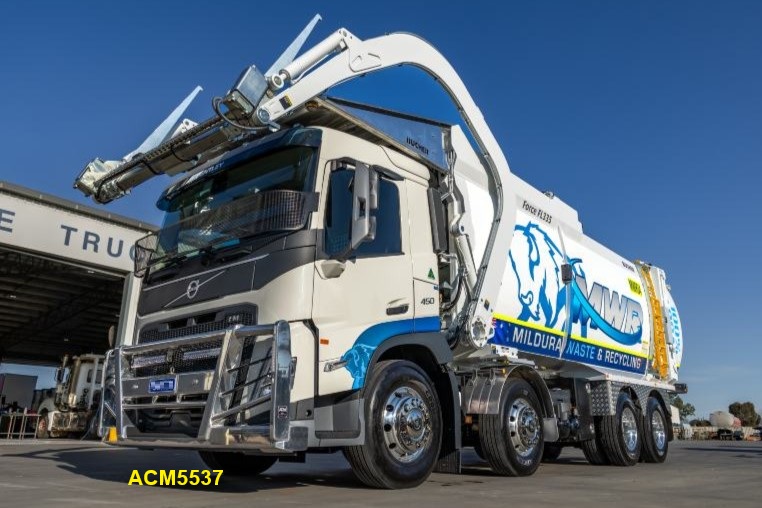

• Part Number: ACM5537 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: 165mm main beam, 90x130mm inner posts, 70mm tapered outer posts, heavy duty tow point, removable towpin, LED park/indicators & spot/LED light brackets.
• Optional: Hinged rego plate holder in front of towbox.

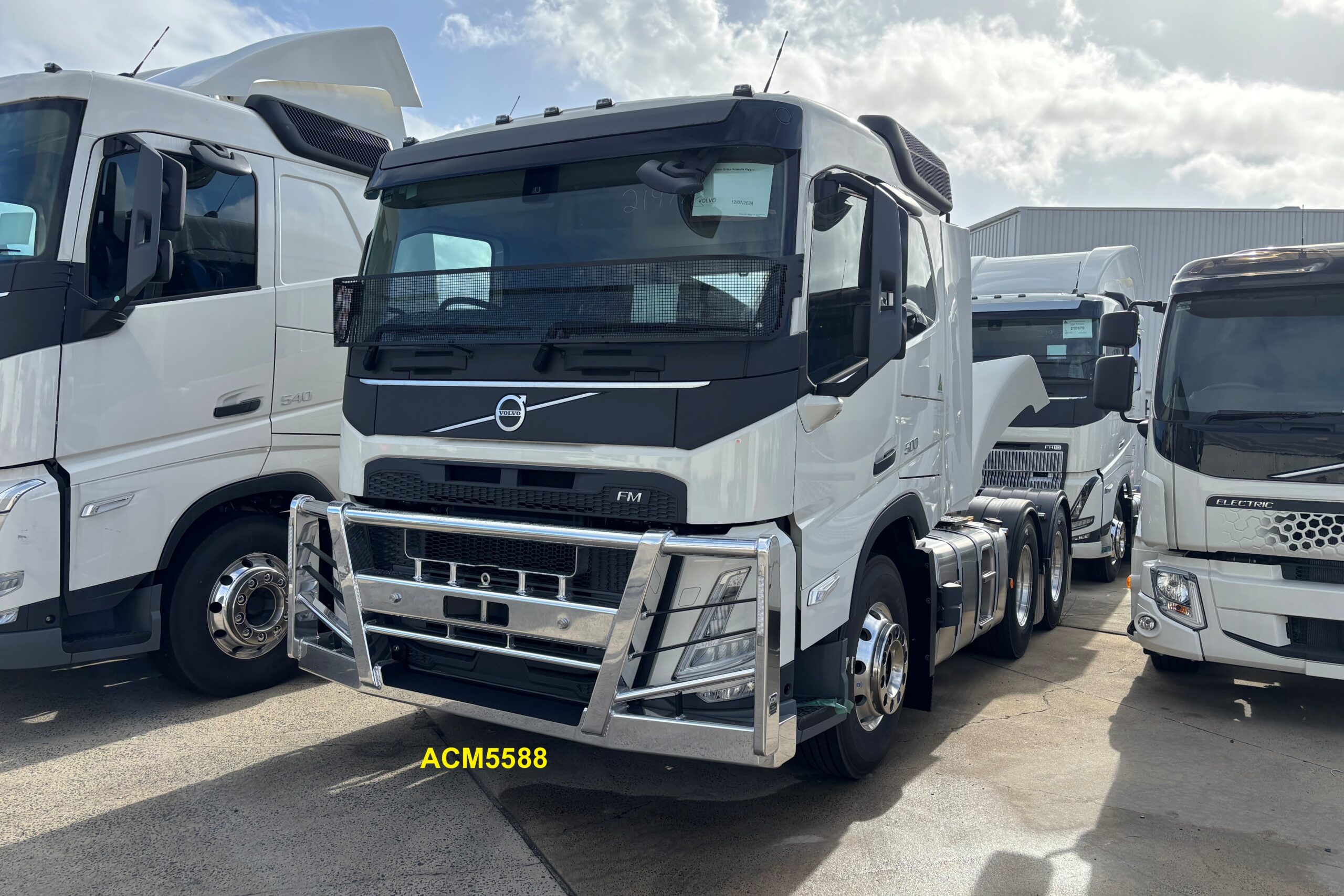

• To Suit: Volvo
• Part Number: TBA (suit old ACC)
• Part Number: ACM5588 (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: 165mm main beam, 90x130mm inner posts, 70mm tapered outer posts, heavy duty tow point, removable towpin, LED park/indicators & upper frame to suit Hella 750mm EnduroLED light bar (P/No. 1GJ910442001) or 28″ Stedi Dual Row light bar (P/No. LEDST4K-28-52L).
• Optional: Hinged rego plate holder in front of towbox.

VOLVO FM 2021+

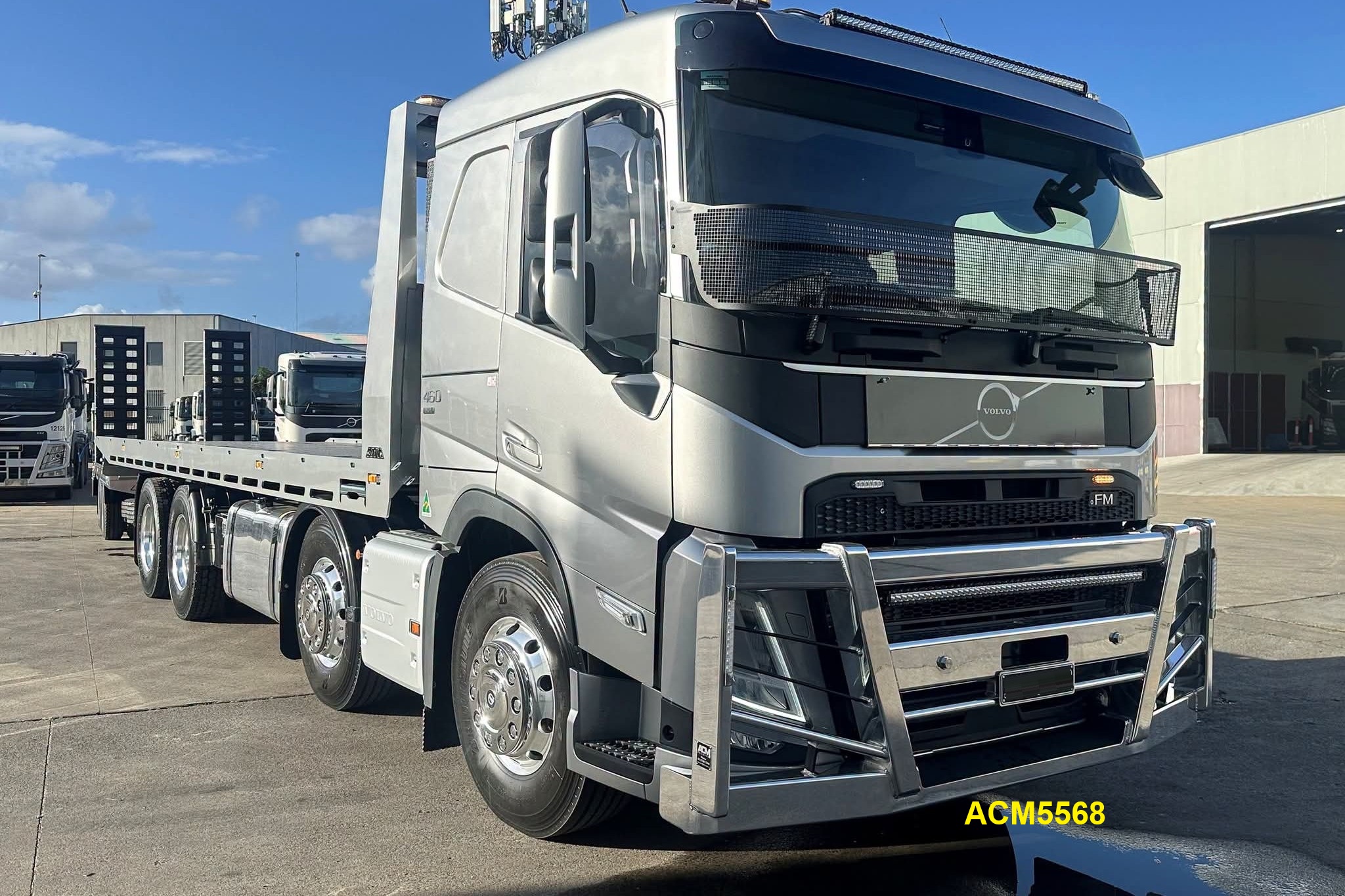

• To Suit: Volvo
• Part Number: TBA – (suit old ACC)

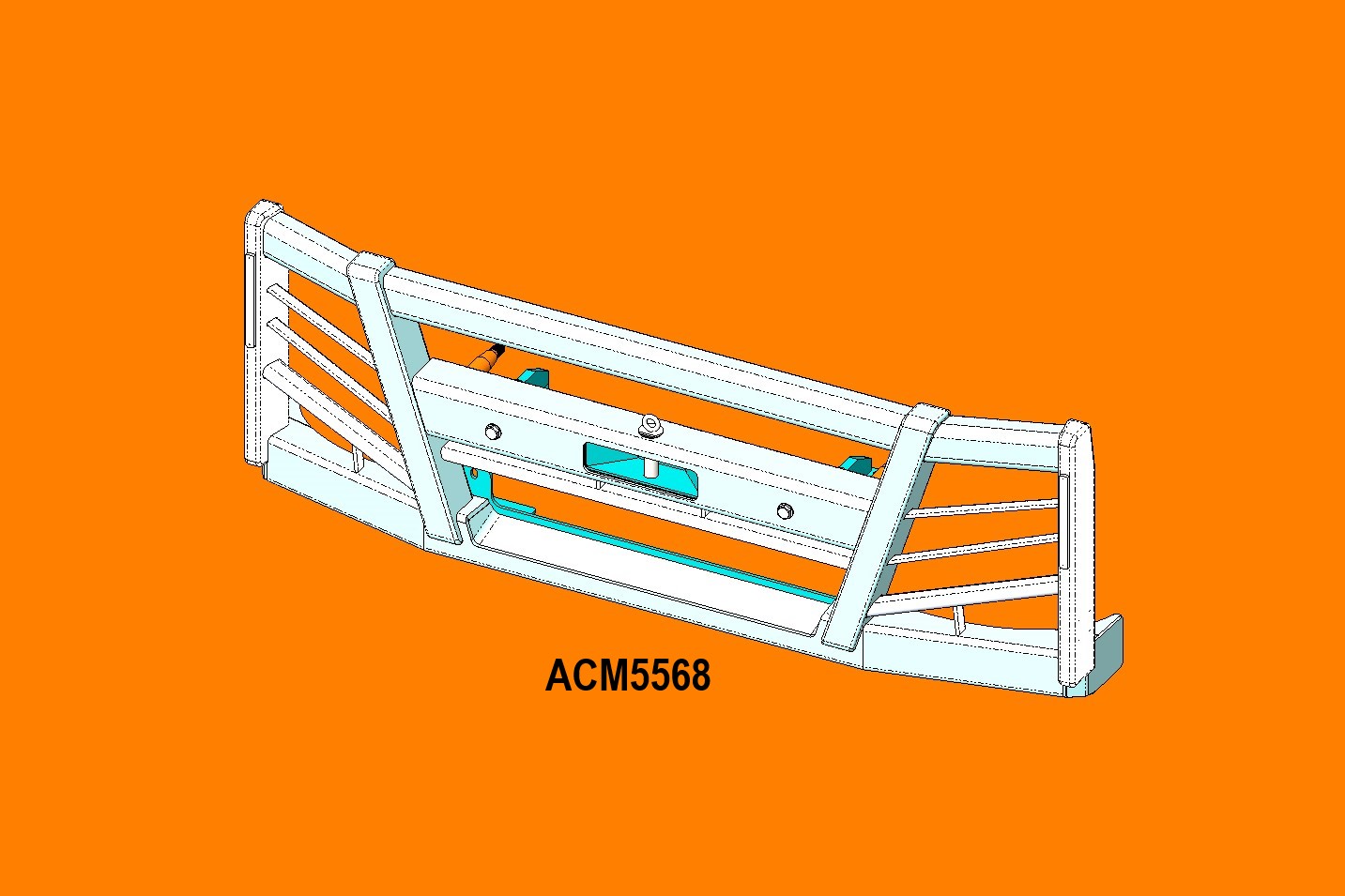

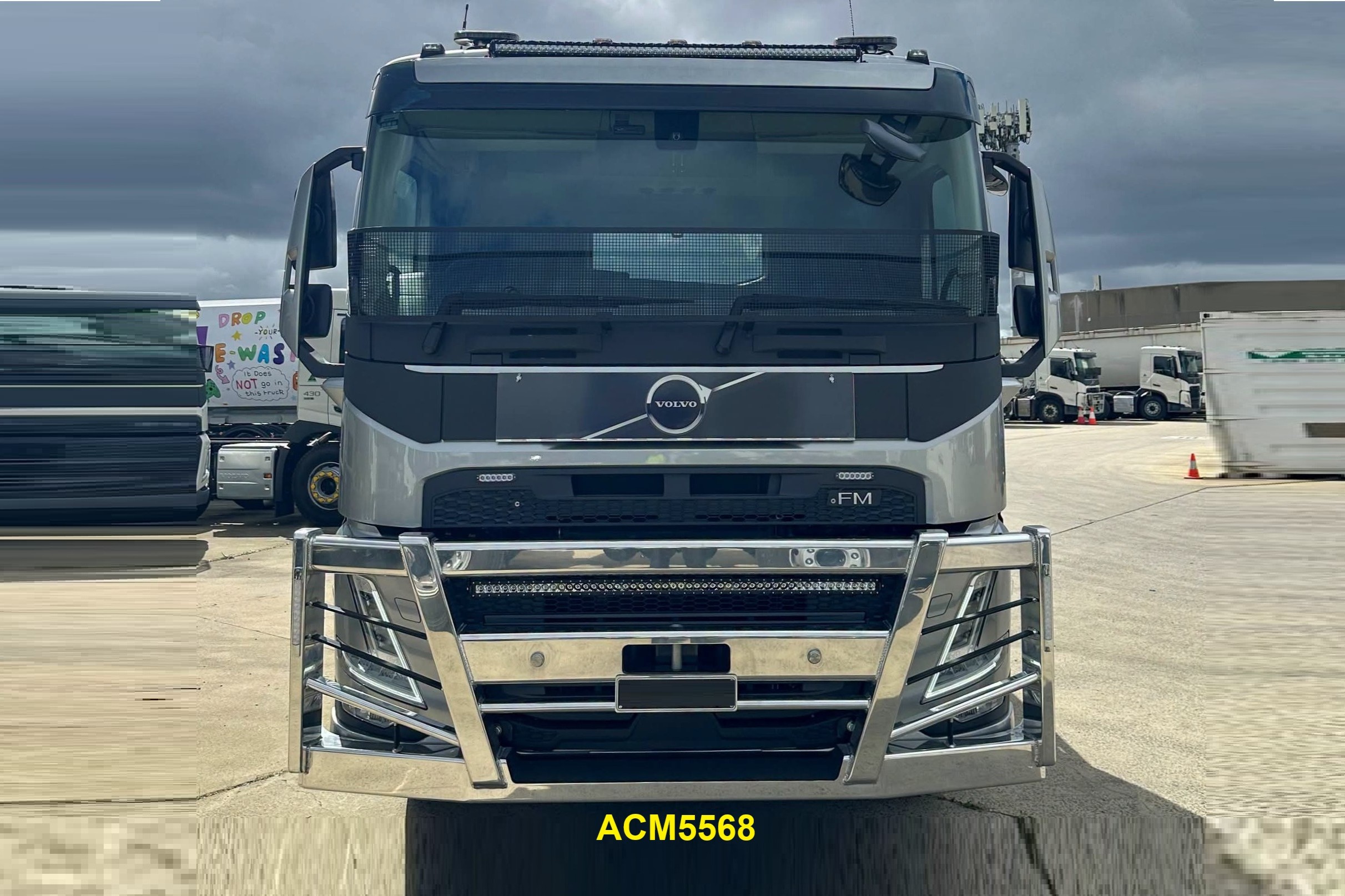

• Part Number: ACM5568 – (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: 165mm main beam, 90x130mm inner posts, 70mm tapered outer posts, heavy duty centre tow point, removable towpin & LED park/indicators.
• Optional: Hinged number plate holder. Supply and fit 2 off 22″ Stedi light bars.
• *Similar to ACM5425 above, but with channel top instead of round pipe.

• To Suit: Volvo
• Part Number: TBA (suit old ACC)
• Part Number: TBA (suit new ACC)
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: Heavy duty tow point, removable towpin, LED park/indicators & spot/LED light brackets.

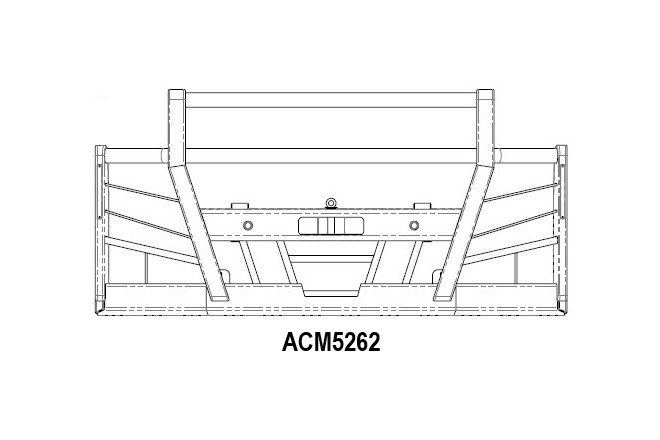

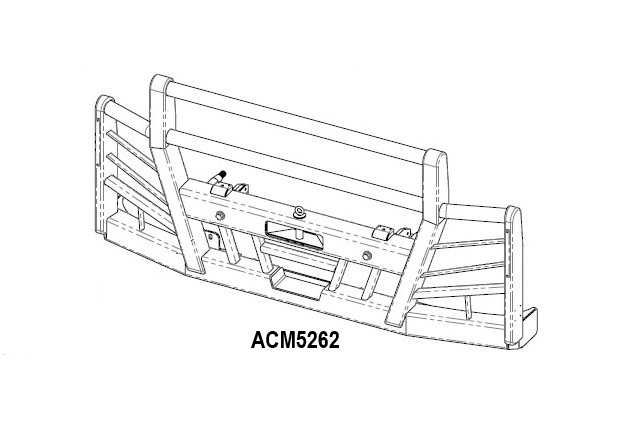

• **ACM5262 photos shown for reference only**

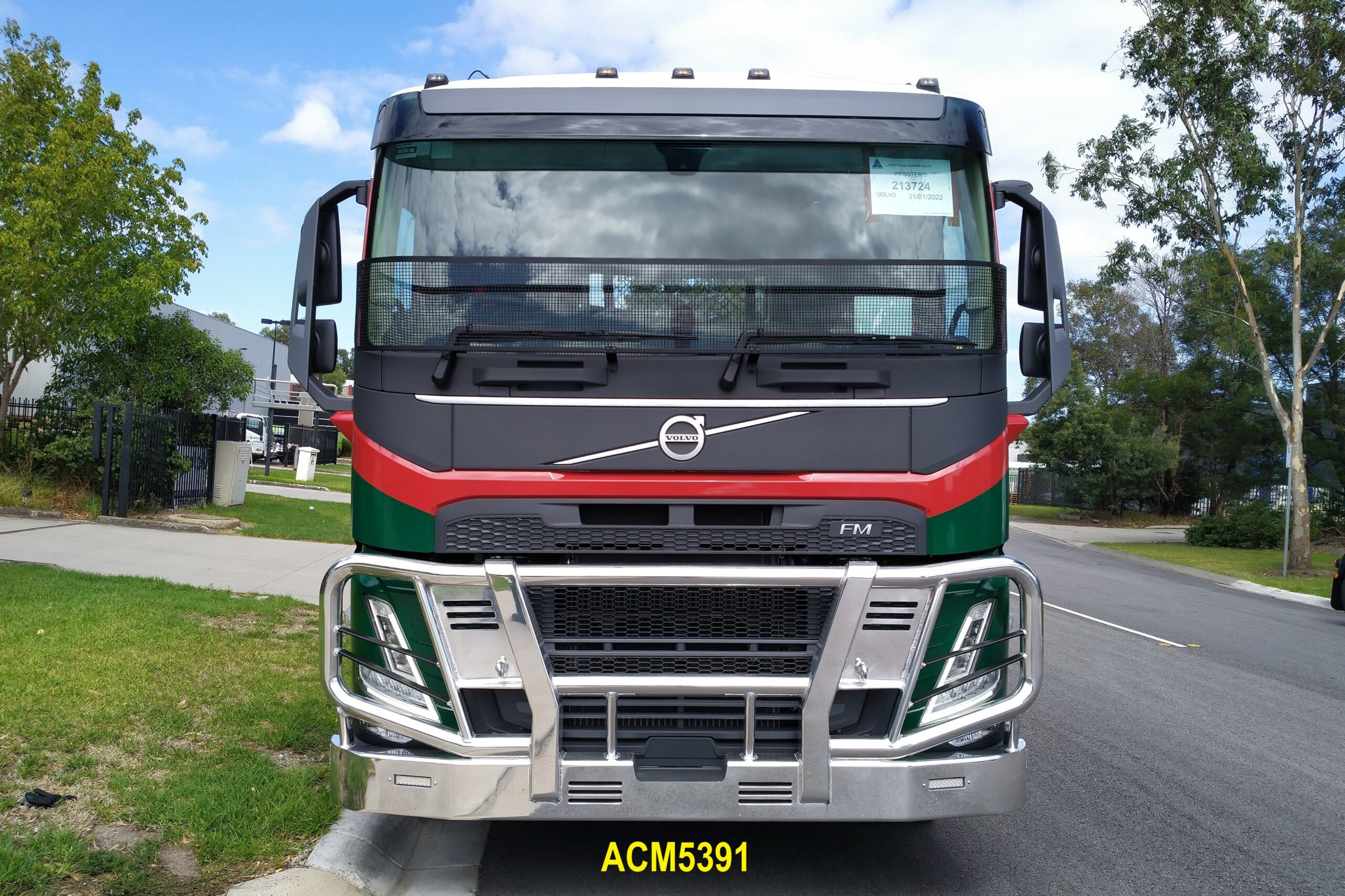

• To Suit: Volvo
• Part Number: ACM5391 (suit old and new ACC)
• Note: ! Volvo factory FLR Relocation kit must be fitted for this bullbar to suit new acc !
• Models: FM 2021+ (VERSION 5) (*excludes 4×2 chassis)
• Includes: LED indicators & (optional) spotlight tabs on centre pipe or LED lightbar bracket.

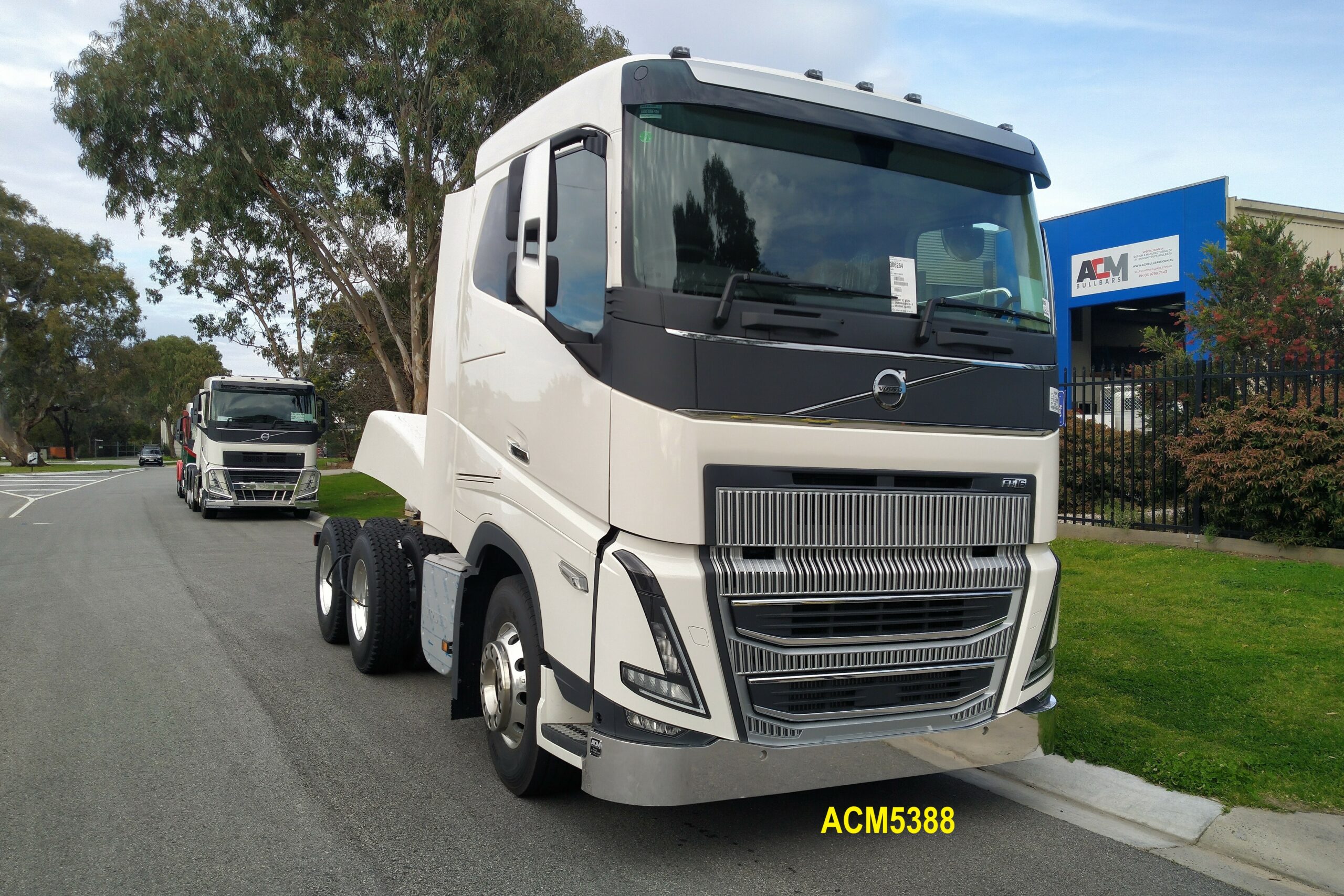

• To Suit: Volvo
• Part Number: ACM5388 (suit old and new ACC)
• Models: FM 2021+ (VERSION 5, all chassis)
• **FH Volvo photos shown for reference only**
